• Base Material: Titanium (Gr1, Gr2, TA1, TA2)

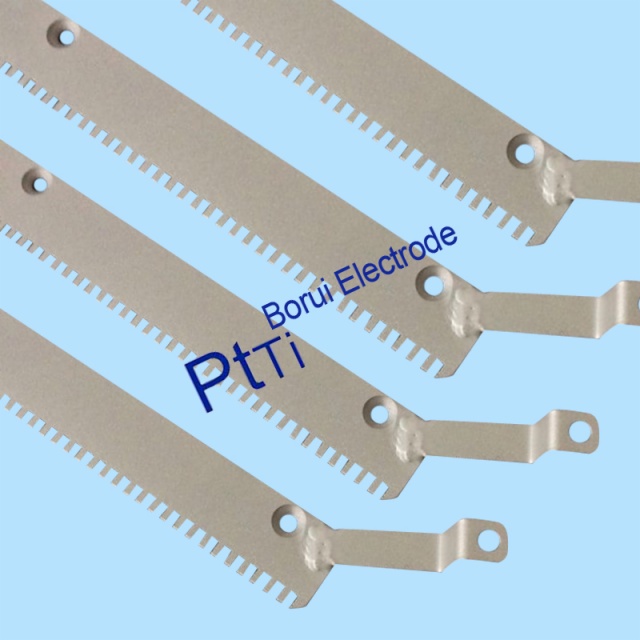

• Shape: Strip (customized)
• Working Current: < 8000 A/㎡
• Workmanship: Plating
• Coating Material: Platinum (purity 99.99%)
• Noble Metal Content: ≥ 21.48  g/㎡
• Platinum Thickness:  0.5-15μm
• Temperature:  < 80℃
• PH Value: 1-12

Properties:  application-specific design, tight adhesion between platinum layer and base titanium material, stable performance, high current and low voltage, even coating.

Application: seawater, gold potassium cyanide + citric acid, horizontal plating, pulse plating, athode protection. It can be used in acidic or alkaline electroplating solution.
