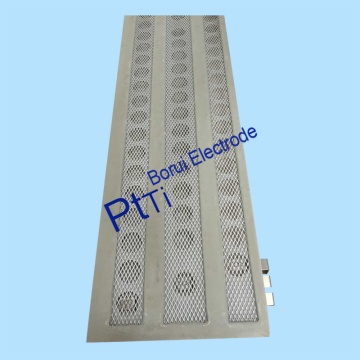

Platinized Titanium Anode (Mesh) BRPT002

Item Code:BRPT002 Features:Platinized titanium anode combine excellent eletrochemical characteristics of platinum with good corrosion qualities of titanium
  • Description



  • Base Material: Titanium (Gr1, Gr2, TA1, TA2)
  • Shape: Mesh (customized)
  • Working Current: < 8000 A/㎡
  • Workmanship: Plating
  • Coating Material: Platinum (purity 99.99%)
  • Noble Metal Content: ≥ 21.48  g/㎡
  • Platinum Thickness:  0.2-15μm
  • Temperature:  < 80℃
  • PH Value: 1-12

Properties:  application-specific design, tight adhesion between platinum layer and base titanium material, stable performance, high current and low voltage, even coating.

Application: seawater, gold potassium cyanide + citric acid, horizontal plating, pulse plating, athode protection. It can be used in acidic or alkaline electroplating solution.
