Platinized Titanium Anode wholesale manufacturer,supplier - Borui Industrial Material Science & Technology

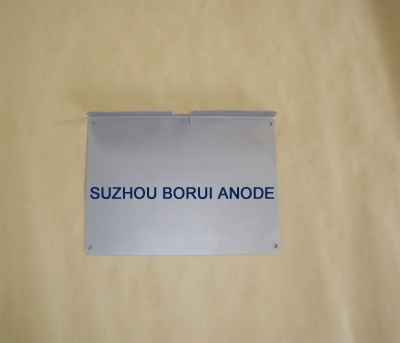

Platinized Titanium Anode BRPTS003

Select All

Enlarge

Item Code:BRPTS003 Features:

<< Prev Back Next >>

Description

Specification:

Base Material:	Titanium (Gr1, Gr2)
Shape Of Base Material:	Sheet / Plate
Working Current:	Max 5000 A/m²
Fluorine Ion Concentration:	Max 500 mg/L
Coating Material:	Platinum (purity 99.99%)
Rare Metal Concentration:	Min 21.48 g/L
Platinum Thickness:	0.5-10 μm
Temperature:	Max 80 ℃
PH Value:	1-12

Properties: application-specific design, very smooth on sheet / plate surfaces, tight adhesion between platinum coating and base titanium material, stable performance, energy saving, recoating possible.

Application: seawater, gold potassium cyanide + citric acid, plating line, pulse plating, cathodic protection, acidic & alkaline plating liquor.
