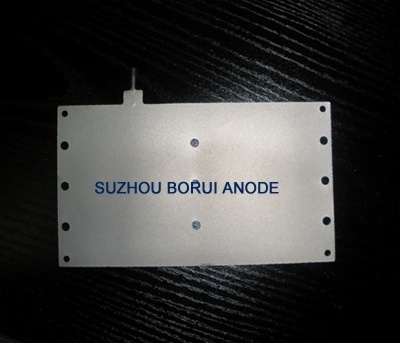

Specification:
|
Base Material:
|
Titanium (Gr1, Gr2)
|
|
Shape Of Base Material:
|
Sheet / Plate
|
|
Working Current:
|
Max 5000 A/m2
|
|
Fluorine Ion Concentration:
|
Max 500 mg/L
|
|
Coating Material:
|
Platinum (purity 99.99%)
|
|
Rare Metal Concentration:
|
Min 21.48 g/L
|
|
Platinum Thickness:
|
0.5-10 μm
|
|
Temperature:
|
Max 80 ℃
|
|
PH Value:
|
1-12
|
Properties: application-specific design, very smooth on sheet / plate surfaces, tight adhesion between platinum coating and base titanium material, stable performance, energy saving, recoating possible.
Application: seawater, gold potassium cyanide + citric acid, plating line, pulse plating, cathodic protection, acidic & alkaline plating liquor.
